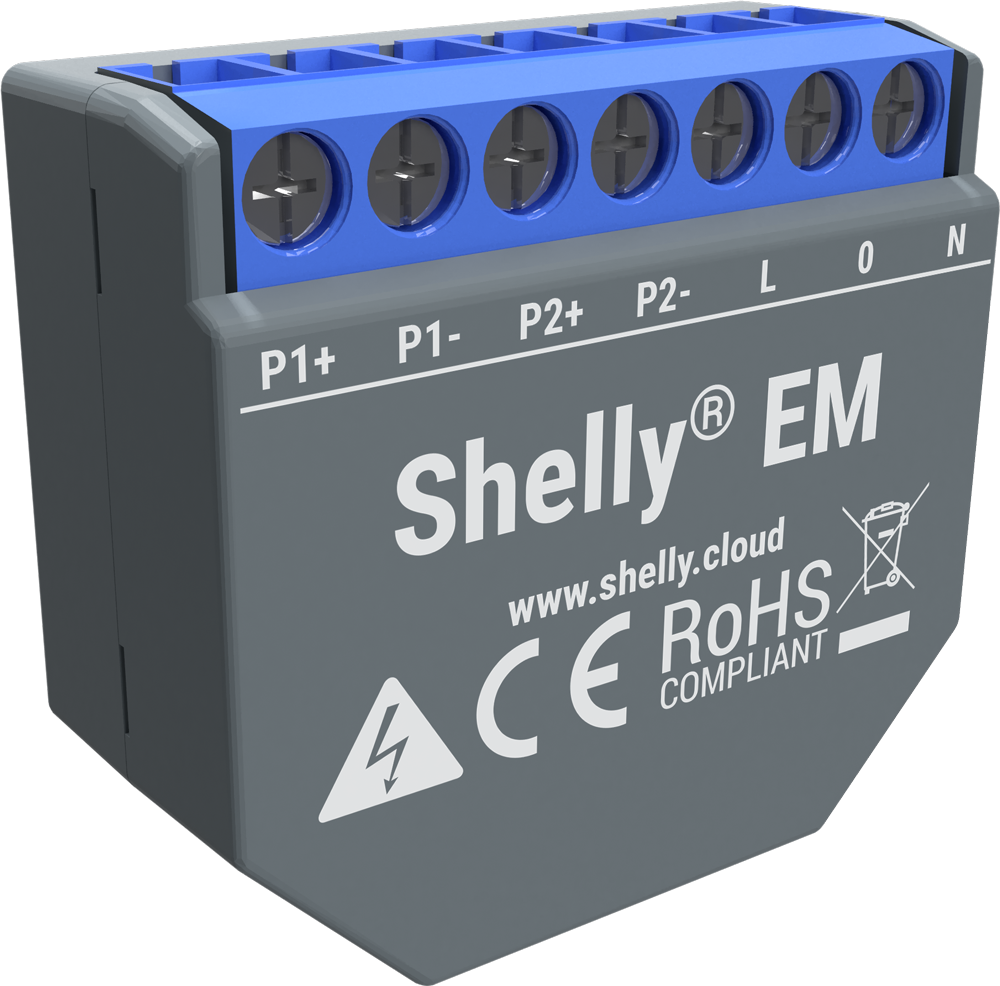

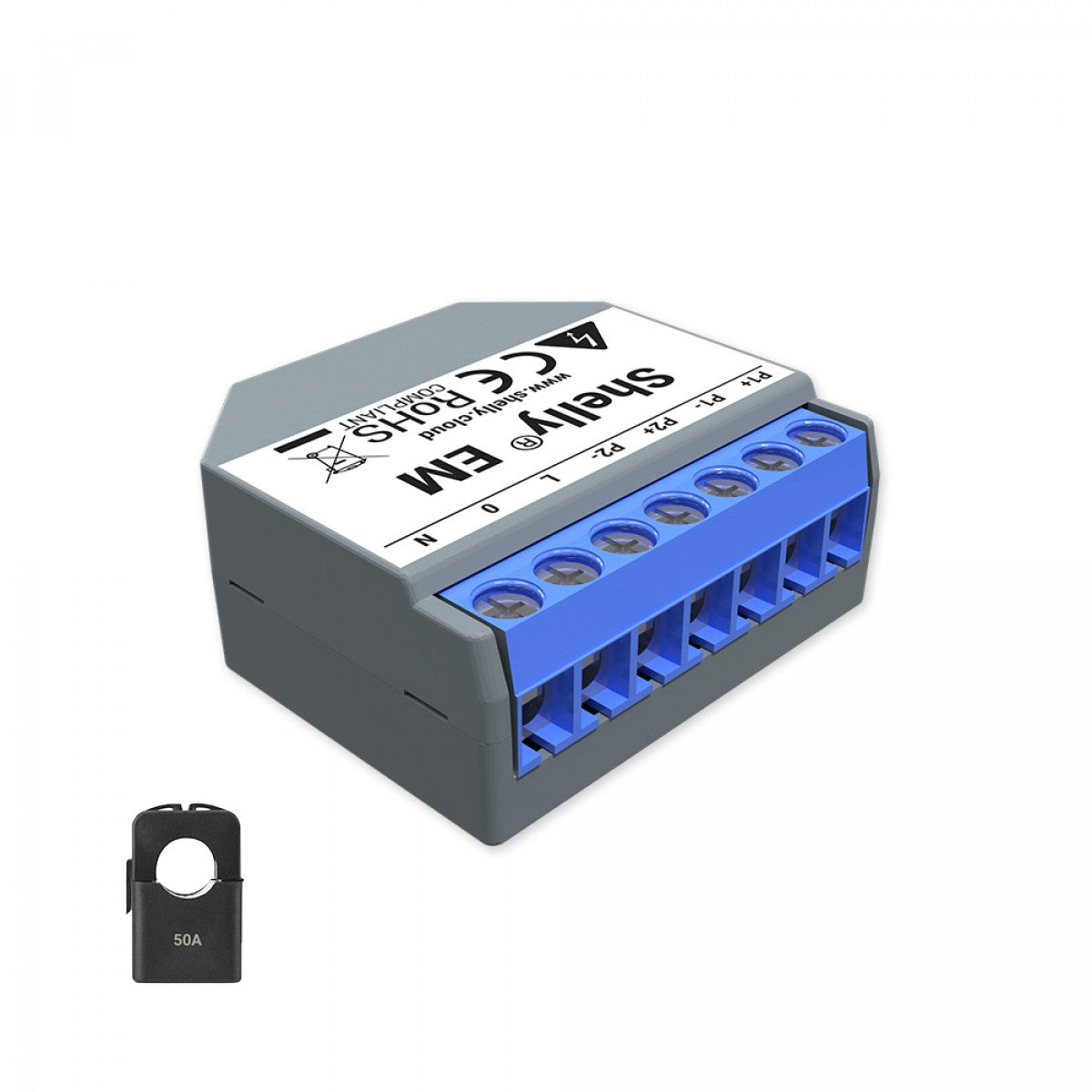

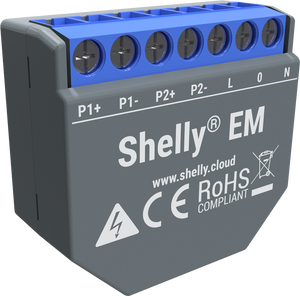

Tveggja rása WiFi stýrður Orkumælir

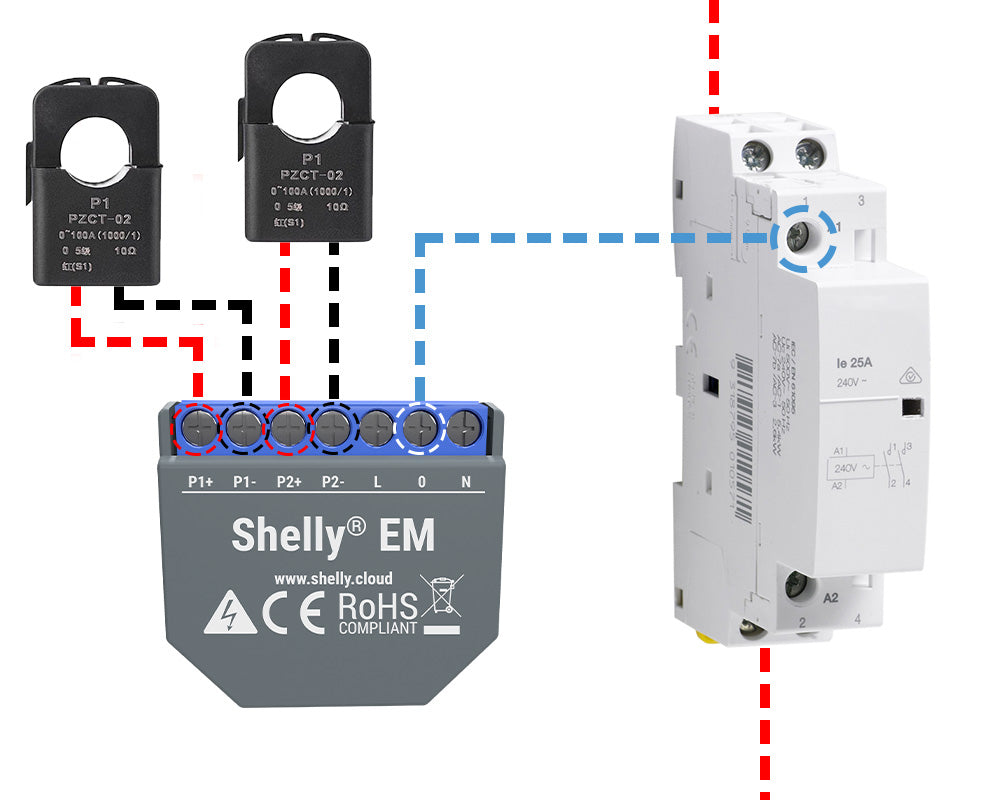

Orkumælir með tvær rásir og taka 120A hvor ásamt því að hafa útgang fyrir eitt relay, til að slökkva t.d. á rafmagni þegar tilsettri orkunotkun hefur verið náð.
- 365 dagar af innbygðu minni án internets
- Notkunar og yfirálagsvörn
- Útgangur fyrir relay (2A)
Tengimöguleikar
- Shelly (iOS, Android, Google Home, Alexa)
- Apple Home (með HomeBridge)
- Home Assistant
- OpenHAB
- Hubitat
- ioBroker
- MQTT
- REST API
- ofl.
Öryggisstaðlar
- RE Directive 2014/53/EU
- LVD 2014/35/EU
- EMC 2004/108/WE
- RoHS2 2011/65/UE
Tæknilegar upplýsingar
| Power | |
|---|---|
| Power supply AC | 110-230V ±10%, 50/60Hz |
| Power supply DC | No |
| Function | |
| Contactor Control | Yes - max 2A |
| Overload protection | No |
| Power measurement | Yes |
| Roller shutter mode | No |
| Device temperature protection | No |
| Working without neutral line | No |
| Feature | |
| Channels | 2 Channel |
| Intelligent on/off | Yes |
| Local and remote control | Yes |
| Operational temperature | -40 to + 40 °C |
| Device power consumption | < 1 W |
| Sunrise/Sunset | Yes |
| Weekly Schedule | Yes |
| Connectivity | |
| Radio frequency | 2400 – 2500 MHz |
| Radio signal power | 1mW |
| Range | up to 50 m outdoors and up to 30 m indoors (depending on the building materials) |
| Wireless/WiFi Protocol | 802.11 b/g/n |
| Dimensions | |
| Size | 39mm x 36mm x 17 mm |
